Dispersing Instrument, IKA^®

T 10 basic ULTRA-TURRAX®

Dispersing instrument for volumes of 0.5 to 100 ml.
A wide speed range allows you to work at high circumferential speeds even with small rotor diameters.

Maintains speed with various media due to high performance 125 Watt drive
Ideal for manual operation due to its light weight and ergonomic form
Extremely mobile due to direct line power (no transformer required)
Stainless steel dispersing elements (5 mm, 8 mm and 10 mm diameter) can be cleaned quickly and easily as they can be dismounted without tools
Plastic disposable dispersing elements in two sizes, particularly suitable for PCR analysis
Quick-release coupling makes changing the dispersing elements easy

Supplied with:

Clamp R 200
Empty storage case (for drive T 10, clamp, dispersing elementsand spare seals)

Technical data:
Motor rating input/output:	125/75 W
Volume range (H2O):	0.5 – 100 ml
Speed adjustment:	stepless
Speed range:	8.000 – 30.000 rpm
Speed display:	scale
Dimensions (W × H × D):	46 × 201 × 57 mm
Weight:	0.4 kg
Permissible ambient temperature:	5 – 40°C
Permissible relative humidity:	80%
Protection class acc. to DIN EN 60529:	IP 30

	Article	Order No.

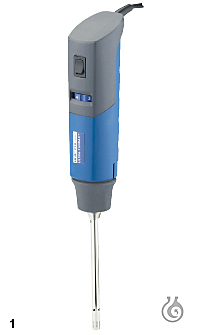

(1)	T 10 basic ULTRA-TURRAX®	10 36 03420

Dispersing elements for T 10 basic

Technical data:
Materials in contact with medium:	PTFE, AISI 316L
pH range:	2 – 13
Suitable for solvents:	yes
Suitable for abrasive substances:	yes
Max. temperature:	180°C
Sterilization methods:	all methods
Ultimate fineness, suspensions:	5 – 25 μm
Ultimate fineness, emulsions:	1 – 10 μm

	(2)	(3)	(4)
Article	S 10 N - 5 G	S 10 N - 8 G	S 10 N - 10 G
Working range ml	0.5 – 10	1 – 50	1 – 100
Ø stator mm	5	8	10
Ø rotor mm	3.8	6.1	7.6
Gap between stator and rotor mm	0.1	0.25	0.2
Min./max. immersion depth mm	20 / 75	20 / 95	20 / 100
Installed length mm	92	115	115
Order No.	10 36 03304	10 36 03305	10 36 03306
€/pc

Plastic dispersing elements for T 10 basic

Plastic materials used approved by FDA.

Technical data:
Materials in contact with medium:	Polycarbonat (PC), Polysulfon (PSU)
Max. temperature:	100°C
Sterilization methods:	autoclavable

	(5)	(6)
Article	S 10 D - 7 G - KS - 65	S 10 D - 7 G - KS - 110
Working range ml	1 – 20	1 – 40
Ø stator mm	7	7
Ø rotor mm	4.8	4.8
Min./max. immersion depth mm	20 / 50	20 / 90
Installed length mm	65	110
Order No.	10 36 03307	10 36 03308
PU pc/Pack	25	25
€/Pack
