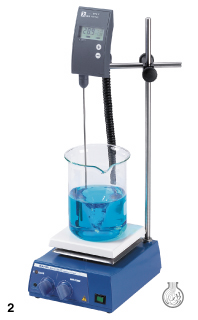

Universal magnetic stirrers with heating and bushing according to DIN 12878 for connecting an electronic temperature controller e.g. ETC 1.

RH digital KT/C safety control complete with digital display for set and actual speed.

• Heating plate with excellent chemical resistance
• Heat output 500 W
• Long life cycle due to foil heating and solid-state switching for heat control
• Adjustable safety circuit for heating plate temperature
• Soft-start stirring motor
• Safety feature: in the event of motor failure the heating switches off automatically

Magnetic stirrer:

Stirring quantity (H₂O): 15 l

Motor rating input/output: 15/2 W

Speed display: scale (0 to 6) / digital

Speed range: 100 to 2.000 min^-1

Max. magnetic bar (L × Ø): 40 × 8 mm

Heating function:

Heat output: 500 W

Heating rate (1 l H₂O in H 15): 4.5 K/min

Temperature range: RT to 320°C

Adjustable safety circuit: 100 to 400°C

Sensor for temperature in medium: ETC 1

Control accuracy with sensor: ±3 K

Heating plate:

Heating plate, stainless steel: white coated

Dimensions: 130 × 130 mm

General data:

Dimensions (W × D × H): 168 × 220 × 105 mm

Weight: 2.4 kg

Permissible ambient data: 5 to 40°C

Permissible relative humidity: 80%

Protection class acc. to DIN EN 60529: IP 21

Special temperature controller for use with magnetic stirrer RH-KT C.

Sensor: PT 1000

Measuring/Control: 0 to 350°C

Temperature display: digital

Resolution: 0.1 K (to 100°C)
1 K (over 100°C)

Setting accuracy: 1 K

Control deviation: ±3 K

Dimensions (W × D × H): 67 × 62 × 145 mm

Weight: 0.2 kg

Permissible ambient temperature: 0 to 60°C

Permissible relative humidity: 80%

Protection class acc. to DIN 60529: IP 44
