testo 925 thermometer
The one channel temperature measuring instrument for connection to reliable, fast-action thermocouple probes. An additional temperature probe can be displayed in testo 925; data is transmitted by radio, i.e. wirelessly. An audible alarm sounds if limit values are exceeded. Current measurement data such as max/min data can be printed on site on the Testo printer - 1 channel measuring instrument with optional radio probe.
- Wide range of probes
- Continuous display of max/min values
- Hold button to freeze reading
- TopSafe, indestructible case, protects from dirt and impact (optional)
- Display light
| Technical data: | | Probe type: | type K (NiCr-Ni) | | Meas. range: | -50 to +1000°C | | Accuracy: | ±(0.5°C +0.3% v.Mw.) (-40 to +900°C)
±(0.7°C +0.5% v.Mw.) (remaining range) | | Resolution: | 0.1°C (-50 to +199.9°C)
1°C (remaining range) | | Case: | ABS | | Dimensions: | 182 × 64 × 40 mm | | Weight: | 171 g | | Battery type: | alkaline-manganese | | Battery life: | 200 h (connected probe, light off)
45 h (radio mode, light off)
68 h (connected probe, light always on)
33 h (radio mode, light always on) | | Operating temperature: | -20 to +50°C | | Storage temperature: | -40 to +70°C | | Warranty: | 2 years |
| Article | Order No. | | (1) | testo 925 instrument | 68 09 09250 | | single-Kanal TE thermometer type K, acoustic alarm, connection of one optional radio probe, incl. battery and calibration protocol |
Measuring instument probes

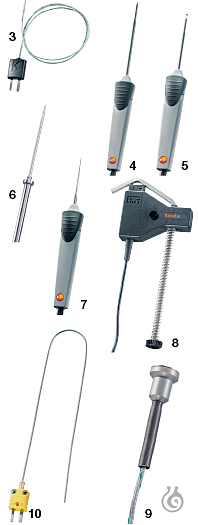

| Article | Order No. | | (2) | Surface probe | 68 09 20393 | | Fast-action, with sprung thermocouple strip, also for uneven surfaces, measurement range short-term to +500°C, TC type K, fixed cable | | | | Measuring range: | -60 to +300°C | | Accuracy: | Class 22) | | t99: | 3 sec |
| | | Precise and fast immersion probe, water-proof, TE type K | 68 09 20593 | | (3) | Thermocouple with TE connector, flexible, length 800 mm, glass silk, TE type K | 68 09 20644 | | Thermocouple with TE connector, flexible, length 1500 mm, glass silk, TE type K | 68 09 20645 | | Thermocouple with TE connector, flexible, length 1500 mm, teflon, TE type K | 68 09 20646 | | (4) | Water-proof immersion/insertion probe, TE type K | 68 09 21293 | | (5) | Robust air cooler, TE type K | 68 09 21793 | | (6) | Robust air cooler, TE type K | 68 09 22292 | | (7) | Fast, water-proof immersion/insertion probe, TE type K | 68 09 22693 | | (8) | Pipe wrap probe with exchangeable measuring head, TE type K | 68 09 24592 | | for tube diameter 5 – 65 mm, measuring range up to +280°C (short-term) | | | (9) | Magnetic probe for higher temperatures on metallic surfaces, TE type K | 68 09 24892 | | adhesive force approx. 10 N with magnets | | | (AT) | Immersion tip, flexible with TE connector, TE type K | 68 09 25792 |
Radio
| Article | Order No. | | Radio module for measuring instrument, 869.85 MHz | 68 09 40188 | | Approval for the countries DE, NL, ES, IT, SE, AT, DK, FI, HU, CZ, PL, GR | | | (AK) | Radio handle for plug-on probe heads, incl. TE adapter | 68 09 40189 | | Approval for the countries DE, NL, ES, IT, SE, AT, DK, FI, HU, CZ, PL, GR | | | TE probe head for air/immersion/insertion measurements | 68 09 20293 | | can be plugged on the radio handle | | | TE probe head for surface measurement | 68 09 20394 | | attachable to radio handle | |
Accessories
| Article | Order No. | Price | | Stand-by case for measuring instrument and probe | 68 09 60182 | | 9 V rechargeable battery for testo measuring instruments | 68 09 50025 | | Charger for 9 V rechargeable battery for external charging | 68 09 40025 | | Handle for plug-on tips | 68 09 91092 | | Testo protocol printer | 68 09 40547 | | with wireless IRDA and infrared interface, 1 roll of thermal paper and 4 round cell batteries | | | Spare thermal paper for printer (6 rolls) | 68 09 40568 | | measurement data documentation with reading life of up to 10 years | | | Transport case for measuring instrument, 3 probes and accessories | 68 09 60200 | | TopSafe, protects against impact and dirt | 68 09 60222 | | TopSafe for testo 925 | 68 09 60220 | | Extension lead 5 m, for thermoelement probe type K | 68 09 40592 |
|
|
