Separatus apparatus DIN/DEV 38405 D 14 Separatus apparatus DIN/DEV...

Apparatus for Waste Water Analysis, Behr

Tenside blowoff device for determination of methylene blue and bismuth active substances

A complete device consists of stand, transverse supports, mountings, gas washing bottles, volumetric flow meters and tenside blowoff columns.

	Article	Order No.
(1)	Complete apparatus with 3 tenside blow-out columns	80 48 00103
	Holding 1 liter, plus accessories
	Tenside blowoff column, 1 l	80 48 00111

behrotest^® distillation apparatus for determination of inorganic total combined flouride

As defined in DIN 38405-D4-2. The complete apparatus is mounted on a stable laboratory stand. A contact thermometer and relay heating control makes the unit suitable for large analysis series. The apparatus is made up of the following:

distillation device made of borosilicate glass for water vapor - acid
NS 14/23 standard ground contact thermometer
heating hood for distilling flask
round flask, nominal volume 1000 ml
volumetric flask, nominal volume 500 ml

	Article	Order No.
(2)	behrotest^® distillation apparatus	80 48 00320

Compact distillation apparatus for cyanide determination

Complete compact systems for cyanide determination. With base frame, heater, flow meter(s), tubing and glass apparatus.

	Article	Order No.
(3)	KTC	80 48 00524
	Compact system for distillation in the determination of total cyanide
(4)	Distillation apparatus KCM 1	10 48 00525
	Complete decomposition and separation apparatus with magnetic stirrer for cyanide determination

behrotest^® CN 6 complete decomposition and separation apparatus for determining total cyanide

Decomposition and separation apparatus for determining total cyanide in a maximum of 6 rounded or flat bottom vessels simultaneously. Simultaneous heating and stirring using an integrated magnetic stirrer with adjustable 4-speed RPM setting.

	Article	Order No.
(5)	behrotest^® CN 6	80 48 50000

behrotest^® digestion apparatus for determining easily releasable cyanide

The apparatus meets the requirements of DIN/DEV 38405 D 14. The design of the reaction flask guarantees high recovery rates and lets you perform digestion on large sample series with minimal space requirements. The apparatus is mounted on a stable laboratory stand. It is easy to operate and clean.
The complete five position digestion apparatus consists of:

bottom base
system mounting
gas distribution
distribution with volumetric flow meter
reaction flask
cork rings
filling funnels
offtake tubes with connecting elbows
adsorption vessels
adapters
ground stoppers
gas water bottle
diaphragm vacuum pump
CE 2 pH electrode

	Article	Order No.
(6)	behrotest^® digestion apparatus	80 48 00330

Apparatus for determination of organic content water

	Article	Order No.
	Separator for separating organic extract according to DIN 38406	80 48 00201

Microseparators for determining Polycyclic Aromatic Hydrocarbon in drinking water

	Article	Order No.
	According to DIN 38409 H 13-2, standard joint NS 14	80 48 00220
	According to DIN 38409 H 13-3, standard joint NS 29	80 48 00225
	Reducing flask, 100 ml	80 48 00221
	With cylindrical neck, for determination of Polycyclic Aromatic Hydrocarbons

Microseparator for determining slightly volatile halogen hydrocarbons

	Article	Order No.
	According to DIN 38407 F 4, standard joint NS 19	80 48 00230

	Article	Order No.
(7)	behrotest^® funnel separator MSE 29	80 48 00380
	For isolation of lipophilic substances from water using liquid phase extraction. Combines the advantages of a microseparator and a separating funnel. The design of the behrotest® funnel separator facilitates simple, clean separation of the phases or the emulsion. The entire organic phase can easily be transferred in the removable separator funnel top for further processing.

behrotest^® sample preparation devices used during determination of the hydrocarbon index

According to ISO 9377-4 (also DEV H 53 in Germany).
behrotest® PFL sampling bottles are ideal for direct extraction as defined in the standard. The bottles with glass stoppers offer advantages in terms of handling and safety.
The behrotest® funnel separator facilitates separation of the organic phase. The various functional groups of the system can be separated. This allows the user to simply and quickly transfer the organic phase in one step to a clean-up column. It also makes it easy to clean the individual functional groups.

	Article	Order No.
(8)	EX 1000	80 48 00202
	Extraction units including a 1000 ml sampling bottle, solid glass topper, 60 ml funnel separator. The behrotest® clean-up column with glass frit fully conforms to the requirements of the new ISO 9377-4 standard. The practical dual stand provides firm support for two complete clean-up units with dropping funnel, clean-up column and Kuderna-Danish flask. The unit lets you perform the complete clean-up step on two samples simultaneously without interruption caused by time-consuming maniupulation of equipment or samples.

	Article	Order No.

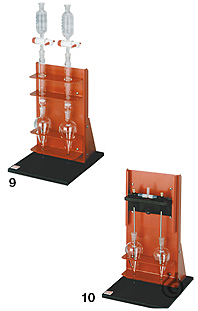

(9)	CUS 2	80 48 00203
	Station for simultaneous clean-up of 2 samples, consisting of a stand, 2 graduated 100 ml evaporation flasks, 2 clean-up columns, pore diameter 2. On the behrotest® nitrogen station, a manifold guides the nitrogen stream via two individually adjustable flow regulators into the Kuderna-Danish flask. Thus, two samples can be evaporated simultaneously using the ISO 9377-4 method.

	Article	Order No.
(AT)	KOSTA	80 48 00204
	Determination of the hydrocarbon index as defined in ISO 9377-4 or DIN/DEV 38409 - H 53: Nitrogen station for simultaneous evaporative concentration of 2 samples. The nitrogen flow can be individually adjusted for each sample.
